Product Description

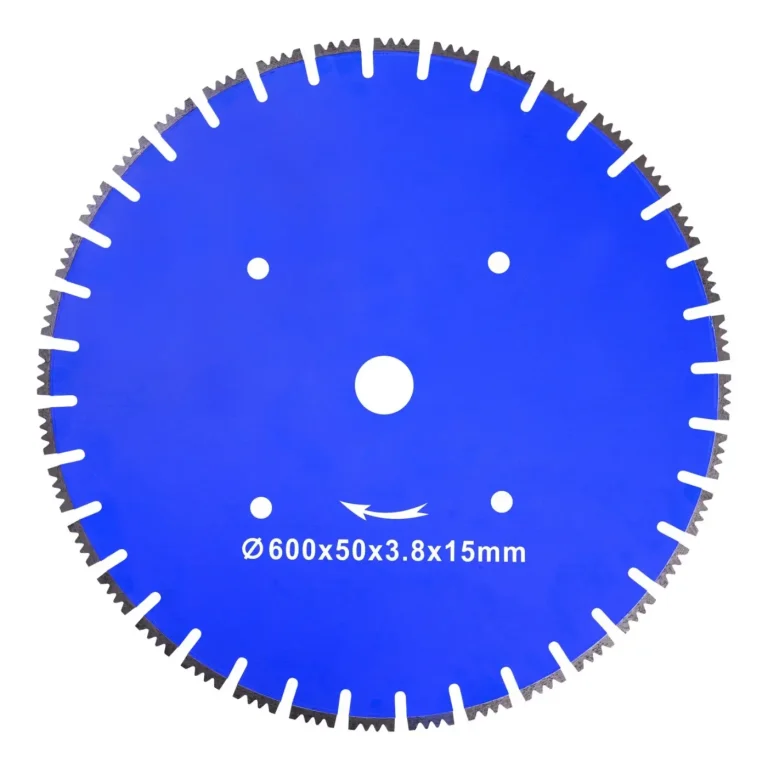

Designed specifically for lightweight AAC blocks and aerated concrete. This fast-cutting brick cutting blade for circular saws features optimized U-shaped gullets to reduce powder build-up and dry slipping. Equipped with continuous turbine-style teeth and high-strength diamonds, it delivers clean cuts with minimal edge chipping for quick block laying on construction sites.
Broad Lightweight Material Adaptability

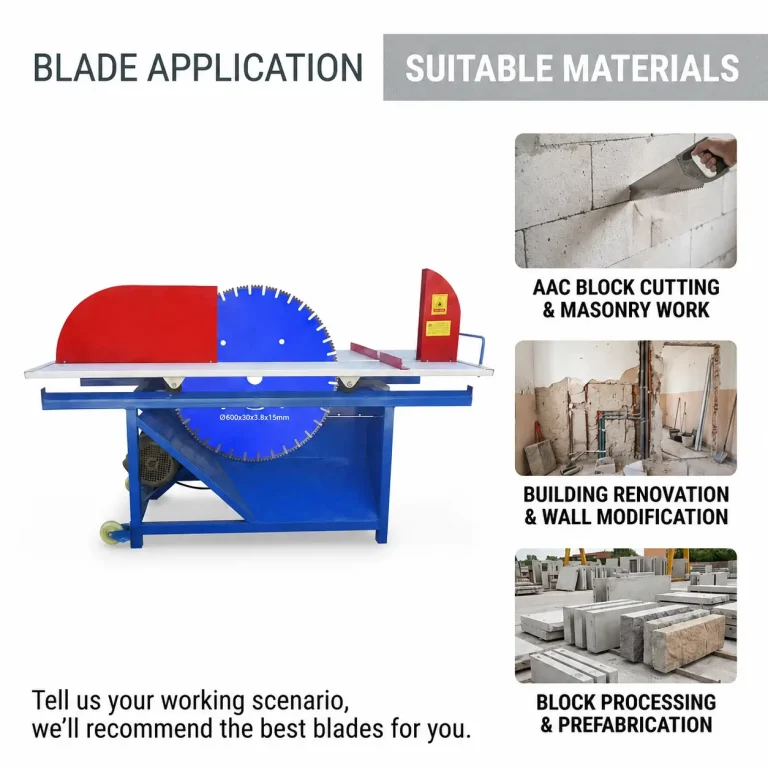

Engineered for autoclaved aerated concrete (AAC), porous lightweight blocks, soft masonry, and dry wall construction materials. Cuts cleanly through soft, powdery bricks with low risk of clogging.

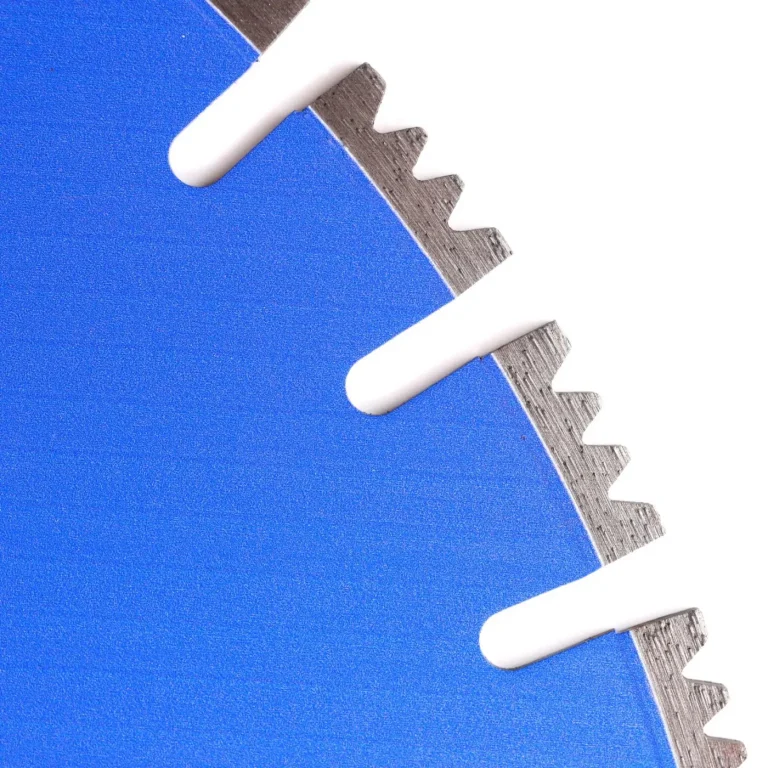

Wide U-Slots Reduce Dry Powder Slippage
Specially designed wide U-shaped gullets rapidly flush out fine, dry masonry powder during cutting. Minimizes powder packing, significantly reducing blade slipping or idling without bite.

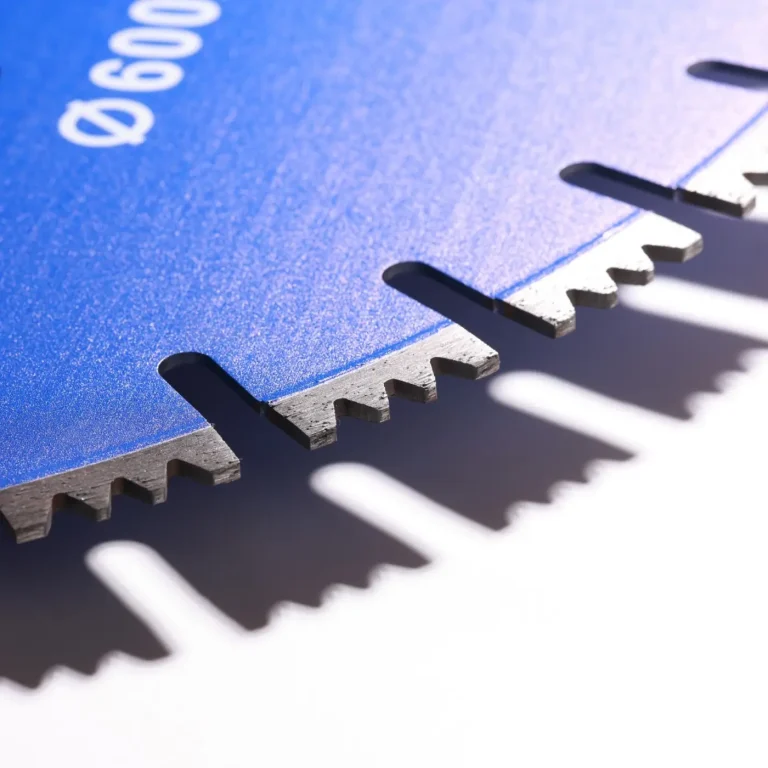

Turbine Tooth Design & High-Strength Diamonds
Combines an aggressive turbine-style tooth profile with high-grade, ultra-sharp diamonds. This diamond brick saw blades aims to Reduce cutting resistance to deliver smooth, precise edges while substantially minimizing edge chipping and crumbling.
Cost-Effective Choice for Masonry & Building Crews
Ideal for wall contractors and lightweight masonry crews. Ensures faster block installation, reduces material waste, and lowers total job-site labor hours.
Full OEM & ODM Customization
Break free from standard designs. Custom segment height/thickness, core thickness, matrix formulas, and aesthetics tailored to your market. Just share your logo, and we’ll deliver free visual branding for your blades.
Want to learn more about our manufacturing capacity?
Check out our [Factory / Production Process / Customization Services].
Product Features
Prevents Powder Clogging & Dry Slippage
Minimizes Edge Chipping & Block Waste
Speeds Up Daily Block Laying Work
Technical Parameter
| Diameter | Arbor Size (mm) | Specifications of Segment | Number of Segment | Package Dimensions (L x W x H)(cm) | Net Weight (kg) | Compatible Machines | ||
| Length (mm) | Height (mm) | Thickness (mm) | ||||||
| 24” / Φ600 | 25.4/30/60 | 40 | 15 | 3.8 | 36 | 65*65*1.5 | 6.30 | Table Saw |
| 28” / Φ700 | 25.4/30/60 | 40 | 15 | 3.8 | 40 | 75*75*1.5 | 9.20 | Table Saw |
| 32” / Φ800 | 25.4/30/60 | 40 | 10 | 5 | 40 | 85*85*1.5 | 13.10 | Table Saw |
| 36” / Φ900 | 25.4/30/60 | 40 | 10 | 5 | 48 | 95*95*1.5 | 17.50 | Table Saw |
| All specifications can be customized, please check ODM&OEM for details. | ||||||||
If you have any questions or need further assistance, please feel free to contact our customer support team. ☺
