Product Description

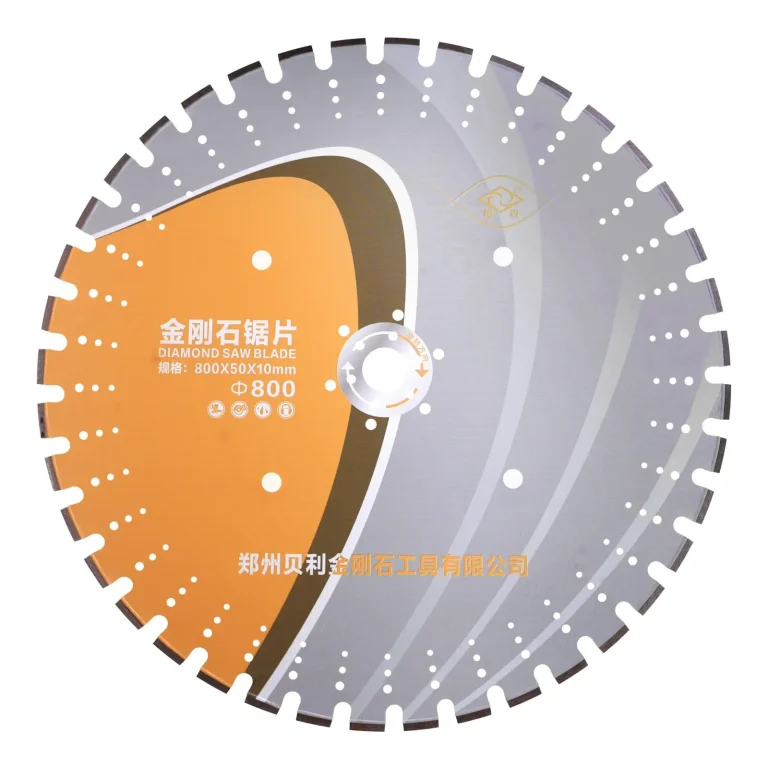

Engineered for heavy-duty structural demolition, this high-precision diamond wall saw blade is built to withstand high torque and heavy rebar loads. Utilizing a high-rigidity 30CrMo alloy steel core and laser-welded segments, it maintains exceptional vertical tracking, eliminates high-altitude segment separation risks, and delivers steady penetration through heavily reinforced concrete structures.
High-Power Structural Demolition

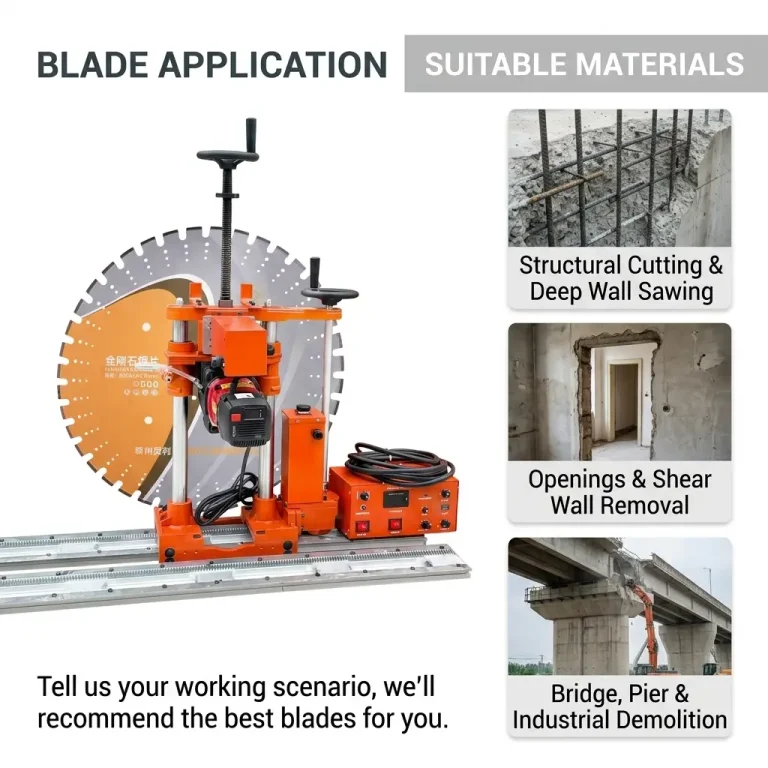

Optimized for electric and hydraulic wall saws. Easily handles deep cuts across heavy rebar walls, shear walls, bridge piers, and thick precast panels.
Versatile Sizing (600mm–1400mm)
Available in full diameter ranges from 600mm to 1400mm. Perfect for demolition contractors needing reliable daily progress and zero downtime.
30CrMo Rigid Core & Laser-Welded Safety

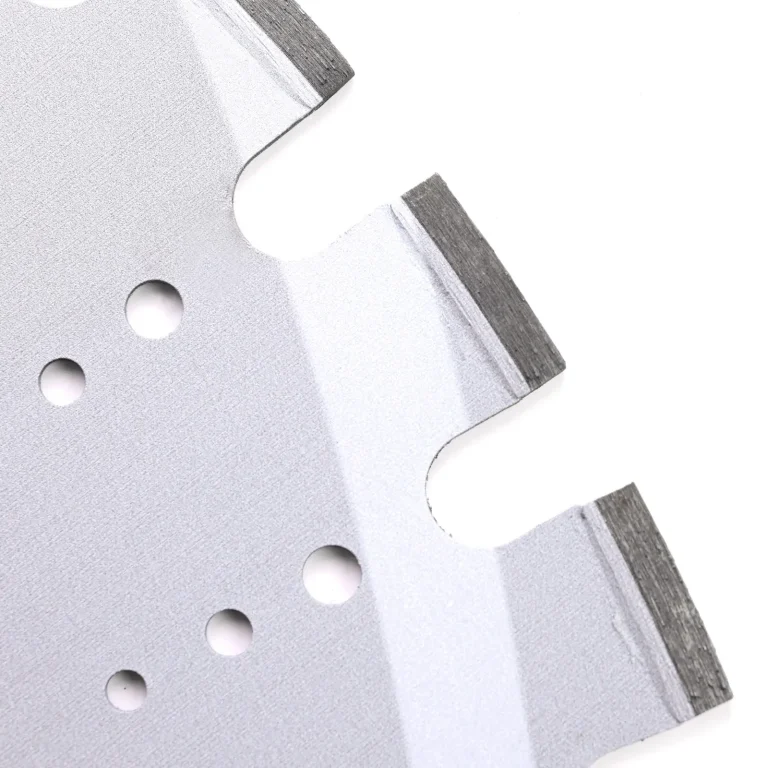

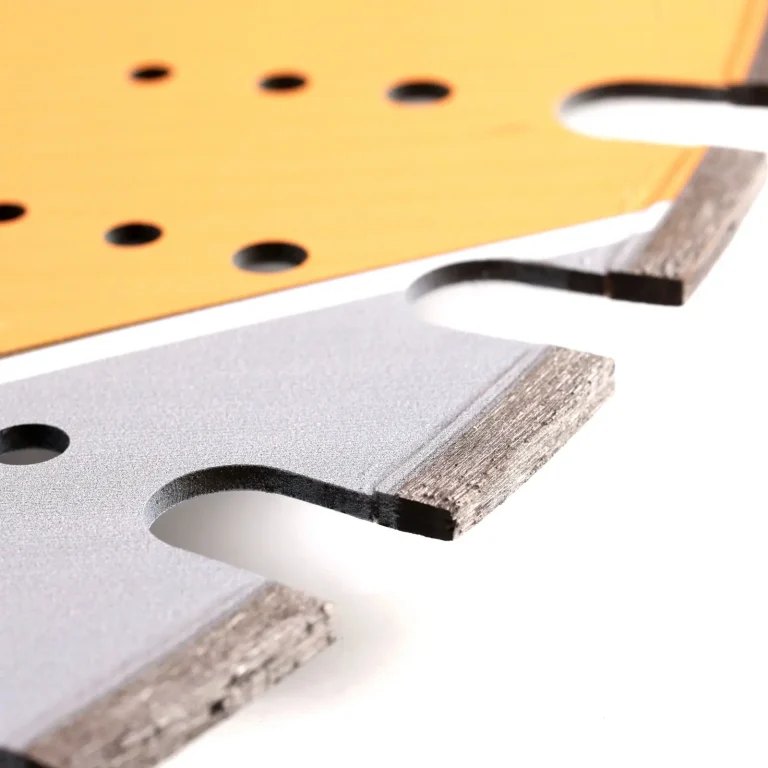

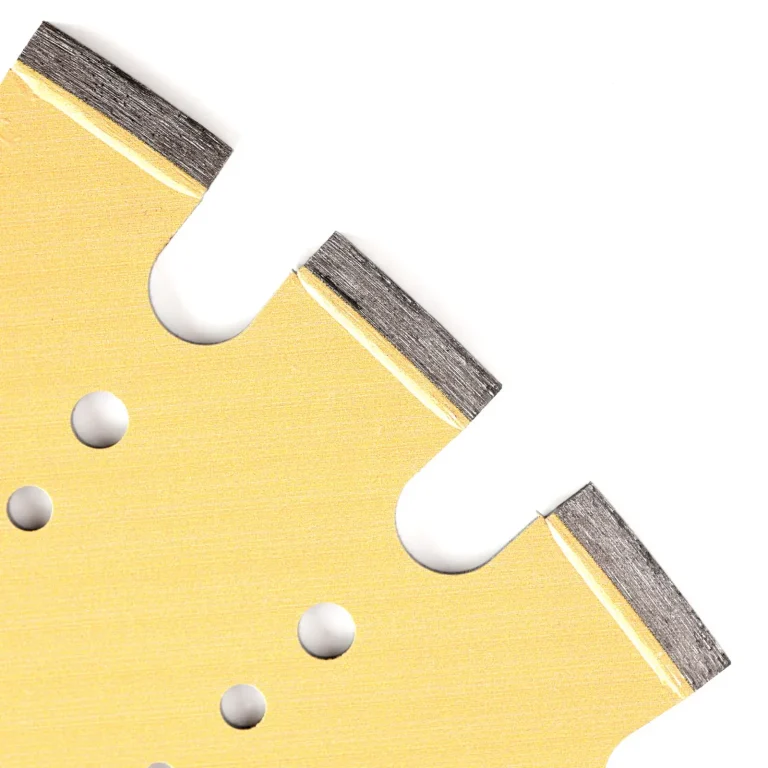

Heavy-duty 30CrMo steel core resists flexing and drifting in deep vertical cuts. Segments of concrete wall saw blade are 100% laser-welded to prevent segment loss under high torque.
High-Thermal-Conductivity Matrix
Combines impact-resistant diamonds with a fast-heat-dissipating bond. Rapidly transfers friction heat away when cutting dense rebar, preventing segment glazing and performance drops.
Full OEM & ODM Customization
Break free from standard designs. Custom segment height/thickness, core thickness, matrix formulas, and aesthetics tailored to your market. Just share your logo, and we’ll deliver free visual branding for your blades.
Want to learn more about our manufacturing capacity?
Check out our [Factory / Production Process / Customization Services].
Product Features
Reduce Segment Loss Under High Torque
Prevents Drifting in Deep Vertical Cuts
Slices Heavy Rebar Network Effortlessly
Technical Parameter
| Diameter | Arbor Size (mm) | Specifications of Segment | Number of Segment | Package Dimensions (L x W x H)(cm) | Net Weight (kg) | Compatible Machines | ||
| Length (mm) | Height (mm) | Thickness (mm) | ||||||
| 24” / Φ600 | 60 | 40 | 15 | 3.8 | 36 | 65*65*1.5 | 6.30 | Wall Saw |
| 28” / Φ700 | 60 | 40 | 10 | 3.8 | 40 | 75*75*1.5 | 9.20 | Wall Saw |
| 32” / Φ800 | 60 | 40 | 10 | 5 | 40 | 85*85*1.5 | 13.10 | Wall Saw |
| 36” / Φ900 | 60 | 40 | 10 | 5 | 48 | 95*95*1.5 | 17.50 | Engineering Wall Saw |
| 40” / Φ1000 | 60 | 40 | 10 | 5 | 50 | 105*105*1.5 | 20.50 | Giant Hydraulic Wall Saw |
| 48” / Φ1200 | 60 | 40 | 10 | 5 | 60 | 125*125*1.5 | 30.50 | Giant Hydraulic Wall Saw |
| 52” / Φ1300 | 60 | 40 | 10 | 5 | 64 | 135*135*1.5 | 35 | Giant Hydraulic Wall Saw |
| 56” / Φ1400 | 60 | 40 | 10 | 5 | 68 | 145*145*1.5 | 40 | Giant Hydraulic Wall Saw |
| All specifications can be customized, please check ODM&OEM for details. | ||||||||
If you have any questions or need further assistance, please feel free to contact our customer support team. ☺
