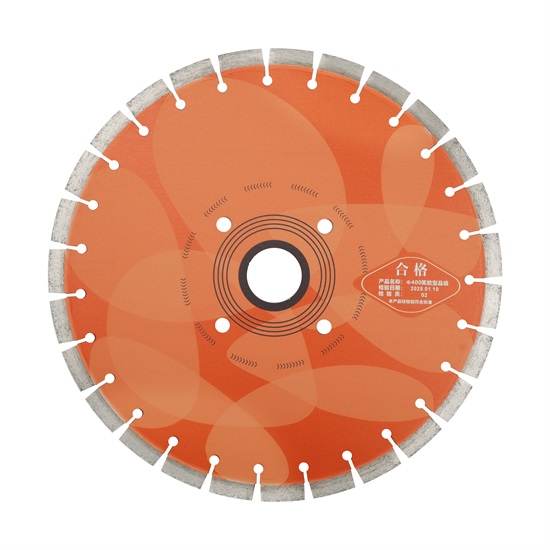

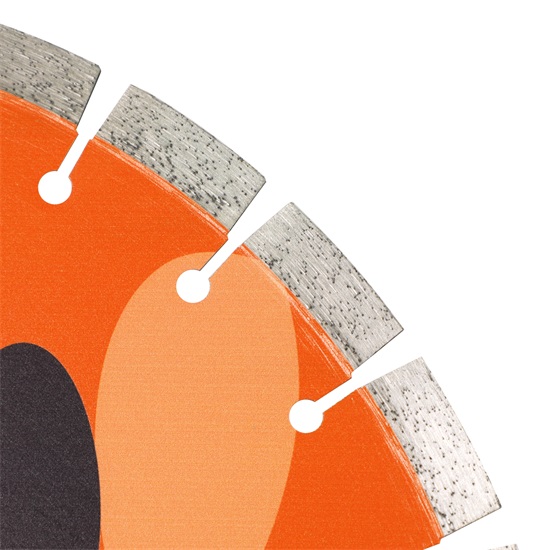

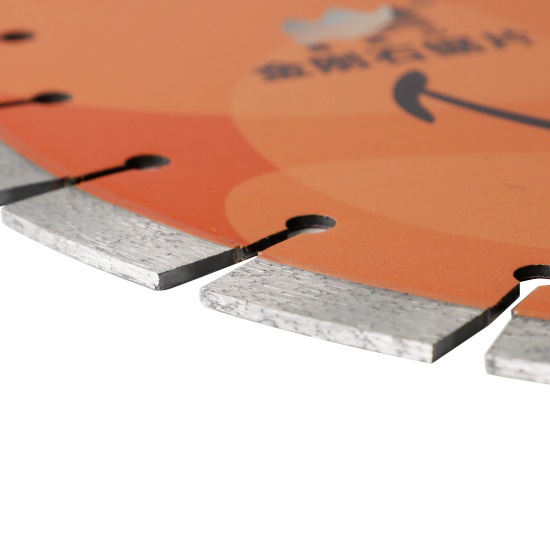

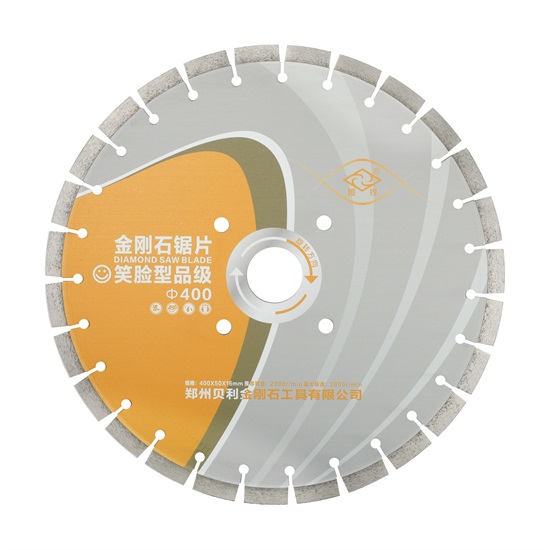

Product Description
Grade Smile diamond saw blade is a well-balanced product with both sharpness and wear resistance, widely used in scenarios requiring high-intensity work. Its balanced design allows the blade to maintain stable performance during the cutting process and has a long lifespan, making it suitable for long-term use in professional concrete cutting and building construction.
Product Features
Cost-effective
High sharpness
Balanced performance
Technical Parameter
| Diameter | Outer Diameter | Specifications of Segment | Number of Segment | ||
| Length (mm) | Thickness (mm) | Height (mm) | |||
| 12’’ / Φ300 | 306 | 40 | 3 | 16 | 20 |
| 14’’ / Φ350 | 355 | 40 | 3 | 16 | 23 |
| 16’’ / Φ400 | 412 | 40 | 3 | 16 | 27 |
| 18’’ / Φ450 | 462 | 40 | 3.3 | 16 | 30 |
| 20’’ / Φ500 | 512 | 40 | 3.3 | 16 | 33 |
| 24’’ / Φ600 | 610 | 40 | 3.8 | 15 | 36 |
| 28’’ / Φ700 | 710 | 40 | 3.8 | 15 | 40 |
| All specifications can be customized, please check ODM&OEM for details. | |||||
Brand
HENGRUI
CHIKEOO
Product Use Recommendations
To ensure maximum performance and prolong the life of your saw blade, please follow these recommendations for use:
Installation recommendations
- Ensure that the power and speed of the cutting equipment match the specification of the saw blade.
- Before installation, check the cleanliness of the saw blade and equipment flange to avoid debris or unevenness.
- Install the saw blade in the correct direction of rotation (the surface of the saw blade is marked with a rotation indicator arrow).
- When tightening the flange, use the special tool to apply force evenly, avoiding over-loosening or over-tightening resulting in the eccentricity of the saw blade.
Suggestions for use
- Before cutting, idle the machine for 2-3 minutes to check whether the saw blade runs smoothly.
- When cutting, please apply force evenly, do not press down the saw blade too hard, so as not to cause damage to the equipment or excessive wear of the saw blade.
- This product is designed for wet cutting saw blade, please make sure to use sufficient cooling water during the cutting process to effectively reduce the temperature of the saw blade and prevent the saw blade from being deformed or damaged due to overheating.
- If you find the saw blade is not sharp or there is strange noise during the process of using, please stop the machine immediately for inspection, and replace the saw blade or adjust the equipment if necessary.
Maintenance suggestions
- After use, please remove the dirt and debris on the saw blade and keep it dry to avoid rusting.
- Regularly check the wear of the saw blade, if the segment become blunt or broken, it should be replaced in time to ensure the cutting effect and safety.
- When storing, it is recommended to lay the saw blade flat or hang it to avoid bending or squeezing.
By following the above recommendations, you will get the best cutting results while extending the life of your saw blade. If you have any questions or need further assistance, please feel free to contact our customer support team.
